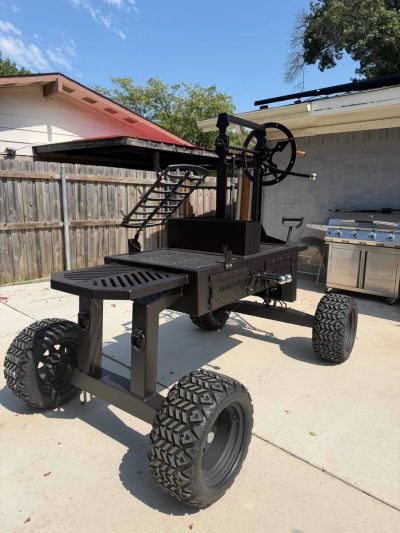

Live Fire Series 480

Our live fire series cookers are fabricated from new 1/4 thick carbon steel. We do not fabricate from used materials. Mill test reports can be provided upon request.

Chamber dimensions are 54” long x 28” depth x 14” tall.

Stock weight is 1044 lbs.

Standard Issue:

01. Two 20"x24" cook racks plasma cut from 3/16 carbon plate steel and framed with 1 1/2" x 1 1/2" carbon steel angle.

02. Cook Chamber bottom and walls are lined with 1 1/4" thick refractory brick splits & high heat mortar.

03. One front fold down access door.

04.  Two 14”x24” prep racks fabricated from 3/4 #9 expanded metal framed in 1 1/2"x1 1/2" carbon steel angle.

05. Legs are fabricated from 3x3 carbon steel tubing

06. Bottom storage rack fabricated from 3/4 #9 expanded metal. (48"x27")

07. Four 10” solid rubber casters with locks (two ridged and two swivel)

07. Four D-Ring 2,000 lb. Tie-Downs

08. High heat black finish.

01. X-L model with 30" wide x 42" Long =+$300.00

02. Single Santa Maria adjustable grates, with block bearings, chain drive, solid driveshaft with 1" bore and 20” flywheel = +$600.00

03. Live open fire box =+$250

04. Fully enclosed fire box with exhaust=+$500

05. Lid fabricated from 3/16 carbon plate steel hinged at rear with thermometers. =+$350

06. Off-Road Package: 3,500 lb. hubs, & spindles, with 4 lug wheels, 20" all terrain tires & Wagon tow. = +$1,000.00

07. Griddle Top =+ $200.00

08. Wok rack with cast Iron Wok =+ $200.00

09. Oven with lid and Thermometer =+ $350.00

10. Single Rotisserie =+ $350.00

11. Accessory storage cabinet =+ $500.00

12. High Heat clear finish= +$150.00

  With single Santa Maria option, open firebox.

 $3,245.00 + Tax if applicable.
