Texas Traditional 120 Gallon

 Our Texas-Traditional series smokers are fabricated from new carbon steel structural pipe. We do not fabricate from used material or old propane tanks. Mill test reports can be provided upon request.

Cook chamber: 24” dia. x 60” length x 3/8 wall thickness.

Firebox: 24” dia. x 24” long x 3/8” wall thickness. Wheelbase = 54” wide x 96” long.  Height is 92” to top of exhaust stack. Stock weight is 1,527 lbs.

Cook chamber: 24” dia. x 60” length x 3/8 wall thickness.

Firebox: 24” dia. x 24” long x 3/8” wall thickness. Wheelbase = 54” wide x 96” long.  Height is 92” to top of exhaust stack. Stock weight is 1,397 lbs.

 01. Double access cook chamber doors with ¾ solid rod custom hinges.

02. 1" Dia solid rod access handles.

03. Tel Tru thermometers with 4" shroud.

03a. 3/4 #9 expanded metal cook racks (Framed in 1x1 Angle iron)

04. Rear door Firebox with six slot adjustable airflow door latch system.

05. Three-piece removable single level cook grates.

06. 6” dia. x 48” long exhaust with adjustable damper and heat collector at cook chamber exit.

07. Two 1 1/2" grease drains with ball valve.

08. 60”x16” prep rack across front of cook chamber.

09.Wood storage rack below cook chamber. (Caster-Wheeled models only)

10.  Four 8” heavy duty 2400 lb. locking caster wheels (2 rigid’s & 2 swivel’s)

11. Two D-Ring 2,000 lb. Tie-Downs

12.  Black High heat Finish.

01. Partially insulated 24" Dia. firebox. (Refractory brick) =+$250.00

02. Upper-level cook grates on slides with 6" Clearance between lower-level grates. Total of two one at each door = +$150.00

03. Fold down exhaust with flange bracket and hinges. =+$150

04. Stainless steel probe ports. $15.00 Each.

05. Bolted removable exhaust with flange =+$75.00

06. 3/16 carbon steel cook grates. $150.00

07. 2" Airflow control valves with threaded pipe nipple =+$75.00 each Max of 4

08. 3" Airflow control valves with threaded pipe nipple=+$125.00 each Max of 3

09. 24"x24"x24" square Fully insulated double wall 1/4" thick carbon plate steel firebox with 2" of Rockwool insulation and a 1/2" thick solid steel door. Six slot adjustable airflow door Latch system= +$1,000.00

10. Off-Road Package: 3,500 lb. hubs, & spindles, with 4 lug wheels, 23" all terrain tires & Wagon tow. = +$1,100.00

11. Single Axle Trailer = +$2,500.00

12. High Heat Clear finish. = +$150.00

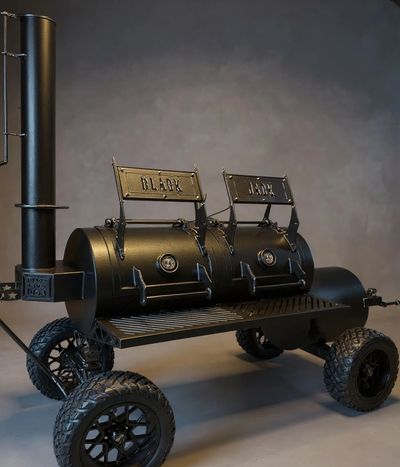

As shown above with the optional upper cook racks, Off-road package with wagon tow, fully insulated square double-wall firebox and the clear finish.

Price as shown= $6,995.00
