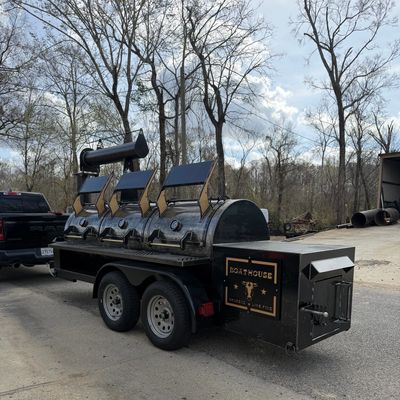

Texas Traditional 500 Gallon

 Our Texas-Traditional series smokers are fabricated from carbon steel structural pipe. We do not fabricate from old propane tanks.

Cook chamber: 36” dia. x 120” length x 3/8 wall thickness.

Firebox: 36” dia. x 36” long x 3/8” wall thickness. Wheelbase = 60” wide x 156” long.  Height is 92” to top of exhaust stack.

 01. Tripple access cook chamber doors with ¾ solid rod custom hinges.

02. 1" Dia solid rod access handles.

03. Tel Tru thermometers with 4" shroud.

03a. 3/4 #9 expanded metal cook racks (Framed in 1x1 Angle iron)

04. Rear door Firebox with six slot adjustable airflow door latch system.

05. Three-piece removable single level cook grates.

06. 8” dia. x 72” long exhaust with adjustable damper and heat collector at cook chamber exit.

07. Three 1 1/2" grease drains with ball valve.

08. 120”x16” rack across front of cook chamber.

09.  four D-Ring 2,000 lb. Tie-Downs

12.  Black High heat Finish.

01. Partially insulated 36" Dia. firebox. (Refractory brick) =+$700.00

02. Upper-level cook grates on slides with 6" Clearance between lower-level grates. Total of two at each door = +$350.00

03. Fold down exhaust with flange bracket and hinges. = Included

04. Stainless steel probe ports. $15.00 Each.

05. Bolted removable exhaust with flange = Included

06. 3/16 carbon steel cook grates. $550.00

09. 36"x36" square Fully insulated double wall 1/4" thick carbon plate steel firebox with 2" of Rockwool insulation and a 1/2" thick solid steel door. Six slot adjustable airflow door Latch system= +$2,500.00

11. Single Axle Trailer = +$2,500.00

12. Tandem axle trailer = + $4,050.00

13. High Heat Clear finish. =+$350.00

14. Cook Chamber door Counterweights. =+350.00

Price as shown= $17.500.00
