Texas Traditional 90 Gallon

Our Texas-Traditional series smokers are meticulously crafted from high-quality carbon steel structural pipe, ensuring longevity and superior performance. We do not use recycled or old propane tanks, guaranteeing a safe and reliable product. Mill test reports are available upon request to verify material integrity.

Cook chamber: 24” dia. x 48” length x 3/8 wall thickness.

Firebox: 24” dia. x 24” long x 3/8” wall thickness. Wheelbase = 54” wide x 86” long.  Height is 6'-8” to top of stock exhaust stack. Stock weight is 1,186 lbs.

01. Single access cook chamber door with ¾ solid rod custom hinges with washer bearings.

02. 1" Dia solid rod access handles.

03 Tel Tru thermometer with 4" shroud.

03a. 3/4 #9 expanded metal cook racks (Framed in 1x1 Angle iron)

04. Rear door Firebox with six slot adjustable airflow door latch system.

04. Two-piece removable single level cook grates.

05. 6” dia. x 36” long exhaust with adjustable damper and heat collector at cook chamber exit.

06.  1 1/2" grease drains with ball valve.

07. 48”x16” prep rack across front of cook chamber.

08.Wood storage rack below cook chamber. (Caster-Wheeled models only)

09.  Four 8” heavy duty 2400 lb. locking caster wheels (2 rigid’s & 2 swivels)

10. Four D-Ring 2,000 lb. Tie-Downs

11.  Black High heat Finish.

01. Partially insulated 24" Dia. firebox. (Refractory brick) =+$300.00

02. Upper-level cook grates on slides with 6" Clearance between lower-level grates. = +$200.00

03. Fold down 48" exhaust with flange bracket, hinges & Prop =+$300

04. Stainless steel probe ports. $15.00 Each.

04a. Stainless front rack. $250.00

05. Bolted removable exhaust with flange =+$75.00

06. 3/16 carbon steel cook grates. $150.00

07. 2" Airflow control valves with threaded pipe nipple =+$75.00 each Max of 4

08. 3" Airflow control valves with threaded pipe nipple=+$125.00 each Max of 3

09. 24"x24"x24" square Fully insulated double wall 1/4" thick carbon plate steel firebox with 2" of Rockwool insulation and a 1/2" thick solid steel door. Six slot adjustable airflow door Latch system= +$1,295.00

09a. 24"x24"x24" square double wall 1/4" thick carbon plate steel firebox uninsulated with 2" air gap and a 1/2" thick solid steel door. Six slot adjustable airflow door Latch system= +$1,100.00

10. Off-Road Package: 3,500 lb. hubs, & spindles, with 4 lug wheels, 23" all terrain tires & Wagon tow. = +$1,195.00

11. Single Axle Trailer = +$2,500.00

12. High Heat Clear finish with natural patina. =+$150.00

12a. 3 stage paint process. (Market Price please ask)

13. Cook Chamber door Counterweights with custom name =+250.00

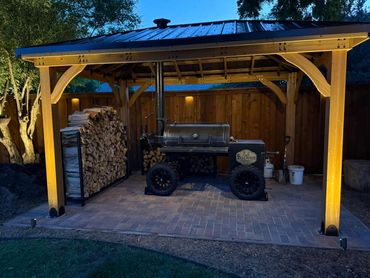

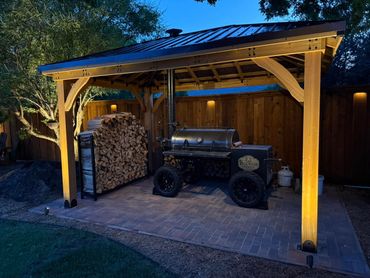

As shown above with the optional upper cook racks, folding 48" exhaust, Off-road package with wagon tow, custom wheels, fully insulated square double-wall firebox and the clear finish.

 $6,595.00
